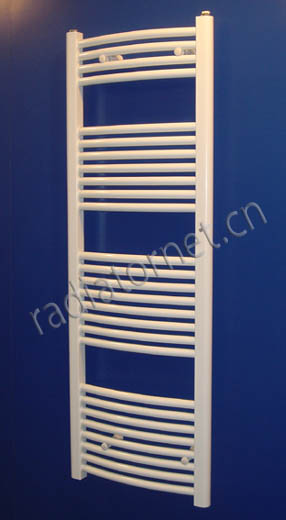

Technical Data (for some standard sizes)

 ( Data based on horizontal tubes with Ø 25mm, vertical with 35 x 40mm )

Notes:

1. The horizontal tubes could be made with diameter of Ø 20mm, Ø 22mm or Ø25mm, their thickness could be 1mm,1.2mm or 1.5mm.

2. The vertical tubes could be made with specification of 35 x 40mm or 30 x 40mm, their thickness is 1.5mm.

3. Any sizes and colors could be available upon client's requests.

4. Working pressure is 7 bars and testing pressure is 10.5 bars for the model made of tube with thickness of 1mm.  Working pressure will be 10 bars and testing pressure could be 15 bars for the model made of tube with thickness of 1.5mm.     Maximal Working temperature: 95℃ .

5. Connection could be made in 1/2" or 3/4".

6. For white color we normally provide in RAL9010 or RAL9016.
